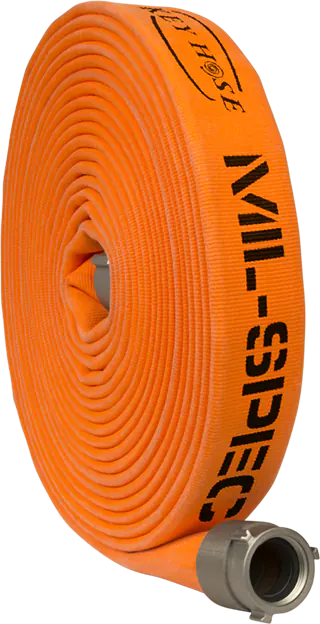

Heavy Duty Rubber

Lined Hose

We are dedicated to the manufacture and delivery of the highest quality hose products, combining the best in raw materials with expert craftsmanship.

Superior double jacket construction, combining 100% premium polyester ring spun staple and filament fibers over a heavy wall, ozone resistant, EPDM rubber liner or NSF‑61 compliant polyurethane liner.

The outer jacket is mildew resistant and treated with our special “Key‑Lok” polyurethane based polymer impregnation for maximum abrasion and moisture resistance.

Rugged, easy to handle and built to withstand every changing environment. This dependable, double jacket hose is UL Listed*, tested to 600 psi and meets MIL‑H‑24606 latest edition.

Features a 10‑year warranty and lifetime liner delamination guarantee.

Features

Specifications

← Slide to view entire chart →

DiameterPart No.Service TestProof TestBurst TestBowl SizeWeight Uncoupled
*1½"DP15-600300 psi600 psi900 psi11516"0.34 lbs/ft
1½"DP15-600PU300 psi600 psi900 psi11516"0.28 lbs/ft
*1¾"DP17-600300 psi600 psi900 psi218"0.38 lbs/ft
*2½"DP25-600300 psi600 psi900 psi3"0.54 lbs/ft
2½"DP25-600PU300 psi600 psi900 psi3"0.46 lbs/ft
*4"DP40-600300 psi600 psi900 psi4½"1.0 lbs/ft

*UL Listed

Colors

Clear Coat

Orange

Blue

NFPA colors available

Spec Sheet

Download PDF

Warranty

Information

Mil-Spec hose has a potential service life and warranty of 10 years, barring mistreatment that would render it unfit for service. Upon delivery, the hose shall be free from defects in materials and workmanship.
